UV Curing Machine

NEW!

PRODEXTM   53

LED curing machine

■  Power 150 W

■  Preheat

■  N2 Input

■  Up & Bottom Light

■  Duty Cycle





PRODEX53 is designed to deliver high-efficiency post-curing for 3D-printed parts, ensuring optimal mechanical strength and improved material properties. Equipped with high-intensity UV LEDs, it provides uniform and consistent curing, significantly reducing curing time while enhancing surface quality and durability.

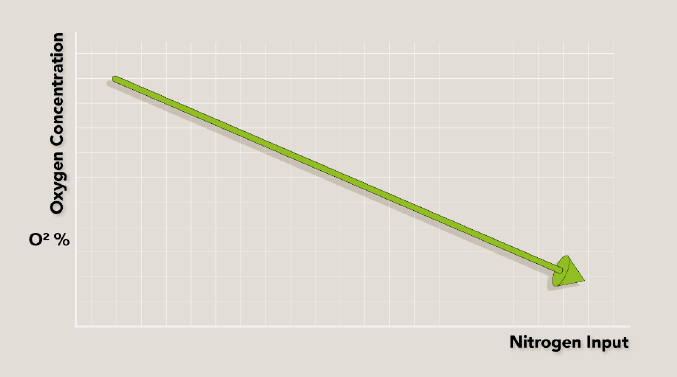

 Enhanced Curing with Nitrogen Integration
The addition of a nitrogen environment minimizes oxygen inhibition, which can interfere with the polymerization process. This results in stronger, more durable prints with improved surface smoothness and reduced tackiness, making it ideal for high-performance applications.



 Integrated Heating Function for Optimal Resin Performance
The built-in heating system maintains a stable temperature within the chamber, ensuring resins cure under optimal conditions. This enhances polymerization, reduces curing defects, and improves the final mechanical properties of the printed parts, making it particularly beneficial for engineering-grade and high-viscosity resins.



 Dual Light Source: Top & Bottom UV Illumination

The top and bottom UV light system ensures 360-degree exposure, eliminating shadowed areas and achieving even curing on all surfaces. This design enhances curing efficiency, particularly for complex geometries, ensuring every part of the print receives the necessary UV exposure.



■ Customizable User Interface & Material Library
PRODEX53 features an intuitive touchscreen interface that allows users to customize curing profiles based on specific resin requirements. The ability to create and store a personalized material library ensures consistent results across different materials, improving workflow efficiency and repeatability.



Rated Power

150 W

Power input

100-240 Vac / 50-60 Hz

Fuse

3A

Quantity of LEDs

Upper Light: 18 pcs
Bottom Light: 18 pcs

Wavelength of LEDs

355~415nm, Peak: 365 nm, 385 nm, 405 nm

Dimension

L200 x W335 x H260 mm (max)

Inner chamber dimensions

L127 x W127 x H76 mm (max)

Weight

8 Kg
